Product Description
Source
• Led: COB 300W, warm white
• Led brand: GeTian
• Led average lifespan: >50,000hrs
• Drive mode: constant current
• Drive current (mA): 5,800
Optics
• Beam angle: 15°-55°
• Color temp: 3000-3200K
• Color rendering index(CRI): Ra>82
• Light ouput (full Bright)@15°: 5,064Lux@4mtr
Light ouput (full Bright)@55°: 2,576Lux@4mtr
Effect
• Electronic dimmer: 0-100% linear
• Electronic strobe: 1-25 flashes/sec.
Control and Programming
• Control mode: DMX, Master/Slave
• DMX Channels: 2/3CH
• Onboard programming functionality enables programming without external DMX controller
• Display: LCD backlit, with English menu
• LCD backgound light 10-100% adjustable
• DMX Data In/Out: both XLR 3Pin and XLR 5Pin
Power Supply
• Power supply: AC100V-240V, 50/60Hz (auto-ranging)
• Power consumption: Max.330W
• Auto switching power supply unit, PFC>0.95
• Power In/Out: Powercon, daisy chain
• Power linking: up to 2units@120V; 5units@230V
Data Connection
• Data Connectors In/Out: XLR 3Pin & XLR 5Pin
Body
• Housing: streching aluminium
• Housing color: black (white optional)
• Housing surface treatment: baking finished
Safety Devices
• Electronic protection against short circuit
Thermal Specification
• Environmental temperature: -20 °C – 40 °C
Cooling System
• Cooper heat pipe cooling system for LED source
• Cooling: forced air convection, with 2 slient fans
Internal protection
• IP rating: IP20
Mechanical Specification
• Length: 270 mm
• Width: 276 mm
• Height: 50 mm
• Net Weight: 8.5 kgs
Accessories

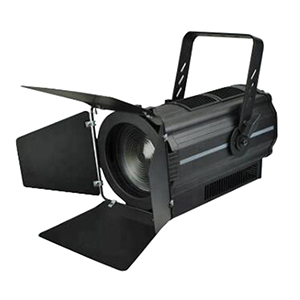

• Barndoor included
• Power input cable included, length 1.5mtr
• DMX cable included, length 2mtr
• Safety cable not included (optional)
