Product Description
Electrical
▪ Power supply: Electronic auto-ranging
▪ Power Input Rating: 100-240 V AC, 50-60 Hz
▪ Power consumption: 250W
Optics

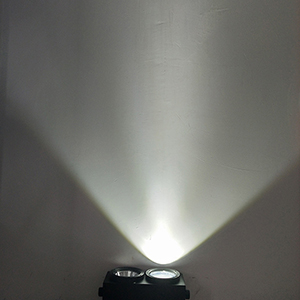

▪ Light source: (2) 100W Cool White 6,400K COB LEDs
▪ Light ouput :3100Lux@5mtr;
▪ Color temp : 6,400K
▪ Drive Mode: Constant Current
Color System
▪ Color: Cool White
Effects
▪ Strobe: 0-25Hz
▪ Dimming : 0% – 100% of Each COB Module
▪ Variable Dimming Curves
Control and Programming
▪ Control Mode: DMX, Auto, Sound-activate
▪ Control Channels: 2/3/5CH

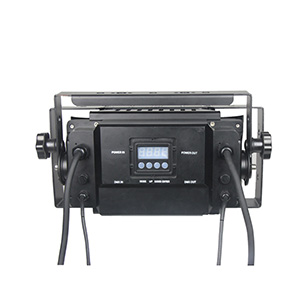

▪ Display: LCD
Connections
▪ Data in/out:XLR 3Pin (XLR 5Pin optional)
▪ Power in/out: PowerCon
▪ DMX Signal Connection: 3-pin/5-pin XLR
Thermal Management
▪ Over temperature protection
▪ Cooling fans intelligent speed regulation
▪ Thermal management system ensures long life of LEDs
Work Enviroment
▪ Maximum ambient temperature (Ta max.): 40° C (104° F)
▪ Minimum ambient temperature (Ta min.): 5° C (41° F)
Safety Devices
▪ Power failure memory
▪ Protection: Overcurrent, overvoltage and overheating
Construction
▪ Housing: aluminium+steel
▪ Color: Black
▪ Housing surface treatment: baking finished treatment
▪ Protection rating: IP65
Mechanical Specification
▪ Length: 364 mm
▪ Width: 200 mm
▪ Height: 180 mm
Weight
▪ Net Weight: 6.5kg
Accessories
▪ Power input cable included, 1.5mm2, PVC sheath, length 1.5mtr
▪ DMX cable not included (optional)
▪ Safety cable not included (optional)
