Product Description
LIGHT SOURCE
● LEDs: COB 350W, cool white
● LEDs brand: Getian, origin in China
● Color temp: 8500K
● Color rendering index(CRI): Ra>76
● Luminous flux: Max. 24,000 lm
● LEDs average lifespan: >50,000hrs
● Drive mode: constant current
● Drive current (A): 10
OPTICS
● Beam angle: 7°-13°
● Light ouput (full Bright)@7°: 4654Lux@15mtr
● Light ouput (full Bright)@13°: 1178Lux@15mtr
● Max. projection distance: 45-50m
● Flicker free (refresh rate >4K Hz)
● Suitable for TV applications and all video recorded events
● 16bit smooth dimming

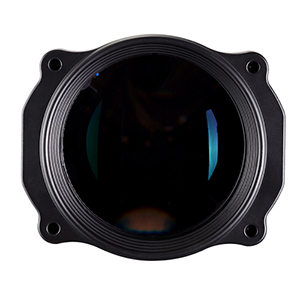

● Optic lens material: dichroic glass
● Multi-set high precision optical Lens
● High quality optic system make super brightness
EFFECTS
● Manual focus
● Manual zoom: 7°-13°
● Electronic dimming: 0-100% linear
● Electronic strobe: 1-20 flashes/sec.
● Built-in strobe macro and speed adjustable
● Strobe effects: normal, pulse, random, strong exploded
● Motor: 3pcs 2-phase, low noise
● Motor rotation: bi-direction, speed adjustable
● Electronic iris: 5-100% linear adjustment
COLOR WHEEL
● 1 color wheel: 5 dichroic colors + open
● Rainbow effect at variable speeds in bi-directions
● with two semi-colors function
● 1 CTO wheel: 3 color temp (3200K/4500K/5600K)
CONTROL MODE
● Control protocol: DMX512
● Control mode: DMX, manual

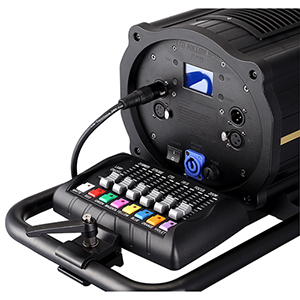

● Comfortable control panel at the rear
● Pragmatic buttons, for immediate opening of iris and dimmer
● DMX channels: 7CH
● DMX data In/Out: XLR 3Pin (XLR 5Pin optional)
DISPLAY & MENU SETTING
● Display: 4-digit LED
● Setting and addressing via 4-menu-button
● Display always ON
● Menu language: English
PAN-TILT
● Pan: any position via lighting stand
● Tilt (Yoke): ±45º
BODY & HOUSING
● Housing: high quality hard streching aluminium
● Housing color: black (white optional)
● Housing surface treatment: baking finished
POWER SUPPLY
● Power supply: AC100V-240V; 50/60Hz
● Power consumption: Max. 450W
● Auto switching power supply unit, 450W, PFC>0.98
● Power In: blue powercon
COOLING
● Cooper heat pipe cooling system for LED source
● Cooling: forced air convection, with 4 fans
THERMAL MANAGEMENT
● Over temperature protection
● Thermal management system ensures long life of LEDs
● Auto switch off light source in case of overheating
SAFETY PROTECTION
● Fuse: 5A
● Electronic protection against short circuit
● Input signal isolating protection
● with safety chain through holes at the yoke
RIGGING & MOUNTING
● Single mounting yoke
● Single operation handle at the rear
ENVIRONMENT AND PHYSICAL
● IP rating: IP20
● Environment temperature: -20°C-40°C
● Dimensions(mm): L775 x W240 x H210 (without yoke)
● Dimensions(inch): L30.51 x W9.45 x H8.27 (without yoke)
● Dimensions(mm): L775 x W275 x H300 (with yoke)
● Dimensions(inch): L30.51 x W10.83 x H11.81 (with yoke)
● Net weight: 11.2kg (24.69lb)
ACCESSORIES
● Power input cable: 1.5mm2, length 1.5mtr
● Power cable sheath material: PVC
● DMX cable included, length 2.0mtr
● Safety cable not included (optional)
● Lighting Strand included
● Flightcase included
